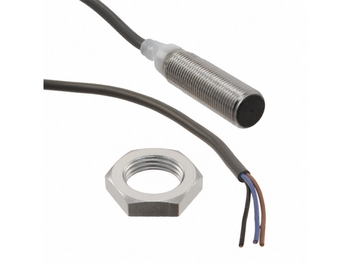

E2A ENDÜKTİF SENSOR
Silindirik pirinç gövde içerisinde artırılmış algılama mesafeli endüktif sensör
• Modüler konseptte geniş portföy aralığı
• Daha uzun ömür için tasarlanıp test edilmiştir
• Islak ortamlarda en yüksek koruma için IP67 ve IP69k
• Uzmanlaşılmış üretim süreciyle sürekli yüksek kalite seviyesi
• DC 3-kablolu ve DC 2-kablolu modeller
• Normalde açık (NA), normalde kapalı (NK) ve antivalent (NA+NK) modeller
• 30mm’ye kadar algılama mesafesi
• Paslanmaz çelik ve pirinç gövde
• Farklı kablo malzemeli ve çaplı kablolu versiyonlar, M8 ve M12 konnektör tipleri, kablo uçlu konnektörlü kablolu tipler
Ürünler
Döküman
Teknik Bilgiler
Resim
Video
Ürünler
Döküman
Teknik Bilgiler
| Boyut | Algılama Mesafesi |
Bağlantı Şekli |
Toplam Boyut mm |
Çıkış Tipi |
NO Model | NC Model | |
| M8 | Düz kafa | 2.0 mm | Kablolu | 27 (40) | PNP | E2A-S08KS02-WP-B1 2M | E2A-S08KS02-WP-B2 2M |
| NPN | E2A-S08KS02-WP-C1 2M | E2A-S08KS02-WP-C2 2M | |||||
| 49 (62) | PNP | E2A-S08LS02-WP-B1 2M | E2A-S08LS02-WP-B2 2M | ||||
| NPN | E2A-S08LS02-WP-C1 2M | E2A-S08LS02-WP-C2 2M | |||||
| M12 Konnektörlü | 27 (43) | PNP | E2A-S08KS02-M1-B1 | E2A-S08KS02-M1-B2 | |||
| NPN | E2A-S08KS02-M1-C1 | E2A-S08KS02-M1-C2 | |||||
| 49 (65) | PNP | E2A-S08LS02-M1-B1 | E2A-S08LS02-M1-B2 | ||||
| NPN | E2A-S08LS02-M1-C1 | E2A-S08LS02-M1-C2 | |||||
| 27 (43) | PNP | E2A-M08KS02-M1-B1 | E2A-M08KS02-M1-B2 | ||||
| NPN | E2A-M08KS02-M1-C1 | E2A-M08KS02-M1-C2 | |||||
| 49 (65) | PNP | E2A-M08LS02-M1-B1 | E2A-M08LS02-M1-B2 | ||||
| NPN | E2A-M08LS02-M1-C1 | E2A-M08LS02-M1-C2 | |||||
| M8 Konnektörlü (3-Pin) | 27 (39) | PNP | E2A-S08KS02-M5-B1 | E2A-S08KS02-M5-B2 | |||
| NPN | E2A-S08KS02-M5-C1 | E2A-S08KS02-M5-C2 | |||||
| 49 (61) | PNP | E2A-S08LS02-M5-B1 | E2A-S08LS02-M5-B2 | ||||
| NPN | E2A-S08LS02-M5-C1 | E2A-S08LS02-M5-C2 | |||||
| Çıkıntılı Kafa |
4.0 mm | Kablolu | 27 (40) | PNP | E2A-S08KN04-WP-B1 2M | E2A-S08KN04-WP-B2 2M | |
| NPN | E2A-S08KN04-WP-C1 2M | E2A-S08KN04-WP-C2 2M | |||||
| 49 (62) | PNP | E2A-S08LN04-WP-B1 2M | E2A-S08LN04-WP-B2 2M | ||||
| NPN | E2A-S08LN04-WP-C1 2M | E2A-S08LN04-WP-C2 2M | |||||
| M12 Konnektörlü | 27 (43) | PNP | E2A-S08KN04-M1-B1 | E2A-S08KN04-M1-B2 | |||
| NPN | E2A-S08KN04-M1-C1 | E2A-S08KN04-M1-C2 | |||||
| 49 (65) | PNP | E2A-S08LN04-M1-B1 | E2A-S08LN04-M1-B2 | ||||
| NPN | E2A-S08LN04-M1-C1 | E2A-S08LN04-M1-C2 | |||||
| 27 (43) | PNP | E2A-M08KN04-M1-B1 | E2A-M08KN04-M1-B2 | ||||
| NPN | E2A-M08KN04-M1-C1 | E2A-M08KN04-M1-C2 | |||||
| 49 (65) | PNP | E2A-M08LN04-M1-B1 | E2A-M08LN04-M1-B2 | ||||
| NPN | E2A-M08LN04-M1-C1 | E2A-M08LN04-M1-C2 | |||||
| M8 Konnektörlü (3-Pin) | 27 (39) | PNP | E2A-S08KN04-M5-B1 | E2A-S08KN04-M5-B2 | |||
| NPN | E2A-S08KN04-M5-C1 | E2A-S08KN04-M5-C2 | |||||
| 49 (61) | PNP | E2A-S08LN04-M5-B1 | E2A-S08LN04-M5-B2 | ||||
| NPN | E2A-S08LN04-M5-C1 | E2A-S08LN04-M5-C2 | |||||
| M12 | Düz Kafa | 4.0 mm | Kablolu | 34 (50) | PNP | E2A-M12KS04-WP-B1 2M | E2A-M12KS04-WP-B2 2M |
| NPN | E2A-M12KS04-WP-C1 2M | E2A-M12KS04-WP-C2 2M | |||||
| 56 (72) | PNP | E2A-M12LS04-WP-B1 2M | E2A-M12LS04-WP-B2 2M | ||||
| NPN | E2A-M12LS04-WP-C1 2M | E2A-M12LS04-WP-C2 2M | |||||
| M12 Konnektörlü | 34 (48) | PNP | E2A-M12KS04-M1-B1 | E2A-M12KS04-M1-B2 | |||
| NPN | E2A-M12KS04-M1-C1 | E2A-M12KS04-M1-C2 | |||||
| 56 (70) | PNP | E2A-M12LS04-M1-B1 | E2A-M12LS04-M1-B2 | ||||
| NPN | E2A-M12LS04-M1-C1 | E2A-M12LS04-M1-C2 | |||||
| Çıkıntılı Kafa |
8.0 mm | Kablolu | 34 (50) | PNP | E2A-M12KN08-WP-B1 2M | E2A-M12KN08-WP-B2 2M | |
| NPN | E2A-M12KN08-WP-C1 2M | E2A-M12KN08-WP-C2 2M | |||||
| 56 (72) | PNP | E2A-M12LN08-WP-B1 2M | E2A-M12LN08-WP-B2 2M | ||||
| NPN | E2A-M12LN08-WP-C1 2M | E2A-M12LN08-WP-C2 2M | |||||
| M12 Konnektörlü | 34 (48) | PNP | E2A-M12KN08-M1-B1 | E2A-M12KN08-M1-B2 | |||
| NPN | E2A-M12KN08-M1-C1 | E2A-M12KN08-M1-C2 | |||||
| 56 (70) | PNP | E2A-M12LN08-M1-B1 | E2A-M12LN08-M1-B2 | ||||
| NPN | E2A-M12LN08-M1-C1 | E2A-M12LN08-M1-C2 | |||||
| M18 | Düz kafa | 8.0 mm | Kablolu | 39 (59) | PNP | E2A-M18KS08-WP-B1 2M | E2A-M18KS08-WP-B2 2M |
| NPN | E2A-M18KS08-WP-C1 2M | E2A-M18KS08-WP-C2 2M | |||||
| 61 (81) | PNP | E2A-M18LS08-WP-B1 2M | E2A-M18LS08-WP-B2 2M | ||||
| NPN | E2A-M18LS08-WP-C1 2M | E2A-M18LS08-WP-C2 2M | |||||
| M12 Konnektörlü | 39 (53) | PNP | E2A-M18KS08-M1-B1 | E2A-M18KS08-M1-B2 | |||
| NPN | E2A-M18KS08-M1-C1 | E2A-M18KS08-M1-C2 | |||||
| 61 (75) | PNP | E2A-M18LS08-M1-B1 | E2A-M18LS08-M1-B2 | ||||
| NPN | E2A-M18LS08-M1-C1 | E2A-M18LS08-M1-C2 | |||||
| Çıkıntılı Kafa |
16.0 mm | Kablolu | 39 (59) | PNP | E2A-M18KN16-WP-B1 2M | E2A-M18KN16-WP-B2 2M | |
| NPN | E2A-M18KN16-WP-C1 2M | E2A-M18KN16-WP-C2 2M | |||||
| 61 (81) | PNP | E2A-M18LN16-WP-B1 2M | E2A-M18LN16-WP-B2 2M | ||||
| NPN | E2A-M18LN16-WP-C1 2M | E2A-M18LN16-WP-C2 2M | |||||
| M12 Konnektörlü | 39 (53) | PNP | E2A-M18KN16-M1-B1 | E2A-M18KN16-M1-B2 | |||
| NPN | E2A-M18KN16-M1-C1 | E2A-M18KN16-M1-C2 | |||||
| 61 (75) | PNP | E2A-M18LN16-M1-B1 | E2A-M18LN16-M1-B2 | ||||
| NPN | E2A-M18LN16-M1-C1 | E2A-M18LN16-M1-C2 | |||||
| M30 | Düz kafa | 15.0 mm | Kablolu | 44 (64) | PNP | E2A-M30KS15-WP-B1 2M | E2A-M30KS15-WP-B2 2M |
| NPN | E2A-M30KS15-WP-C1 2M | E2A-M30KS15-WP-C2 2M | |||||
| 66 (86) | PNP | E2A-M30LS15-WP-B1 2M | E2A-M30LS15-WP-B2 2M | ||||
| NPN | E2A-M30LS15-WP-C1 2M | E2A-M30LS15-WP-C2 2M | |||||
| M12 Konnektörlü | 44 (58) | PNP | E2A-M30KS15-M1-B1 | E2A-M30KS15-M1-B2 | |||
| NPN | E2A-M30KS15-M1-C1 | E2A-M30KS15-M1-C2 | |||||
| 66 (80) | PNP | E2A-M30LS15-M1-B1 | E2A-M30LS15-M1-B2 | ||||
| NPN | E2A-M30LS15-M1-C1 | E2A-M30LS15-M1-C2 | |||||
| Çıkıntılı Kafa |
20.0 mm | Kablolu | 44 (64) | PNP | E2A-M30KN20-WP-B1 2M | E2A-M30KN20-WP-B2 2M | |
| NPN | E2A-M30KN20-WP-C1 2M | E2A-M30KN20-WP-C2 2M | |||||
| 30.0 mm | 66 (86) | PNP | E2A-M30LN30-WP-B1 2M | E2A-M30LN30-WP-B2 2M | |||
| NPN | E2A-M30LN30-WP-C1 2M | E2A-M30LN30-WP-C2 2M | |||||
| 20.0 mm | M12 Konnektörlü | 44 (58) | PNP | E2A-M30KN20-M1-B1 | E2A-M30KN20-M1-B2 | ||
| NPN | E2A-M30KN20-M1-C1 | E2A-M30KN20-M1-C2 | |||||
| 30.0 mm | 66 (80) | PNP | E2A-M30LN30-M1-B1 | E2A-M30LN30-M1-B2 | |||
| NPN | E2A-M30LN30-M1-C1 | E2A-M30LN30-M1-C2 | |||||
